Chrysler LS-16 "Lone Star"

Original Spec Sheets

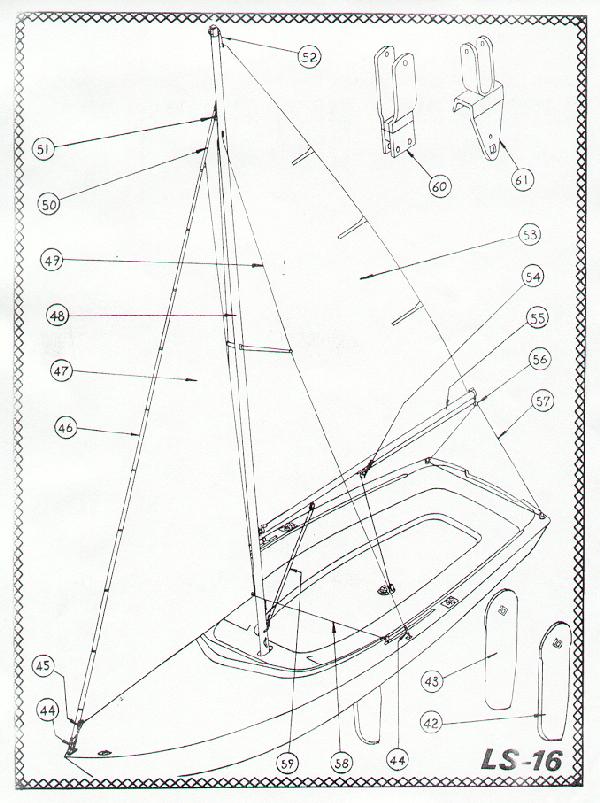

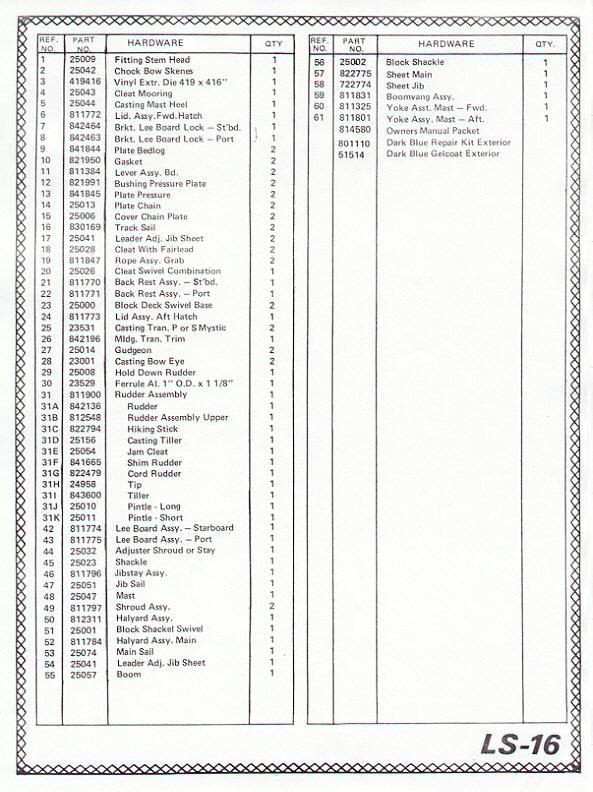

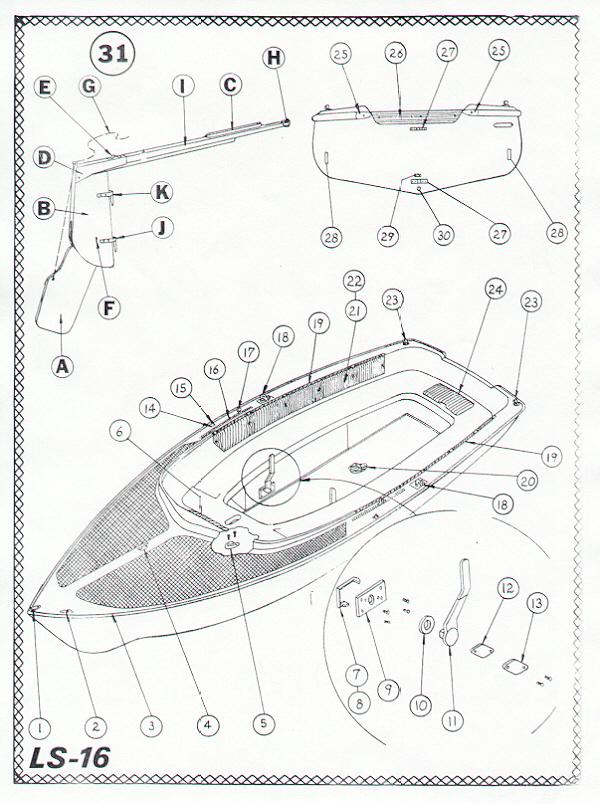

Thanks go to David Kain for scanning and sending these Lone Star 16 spec sheets.

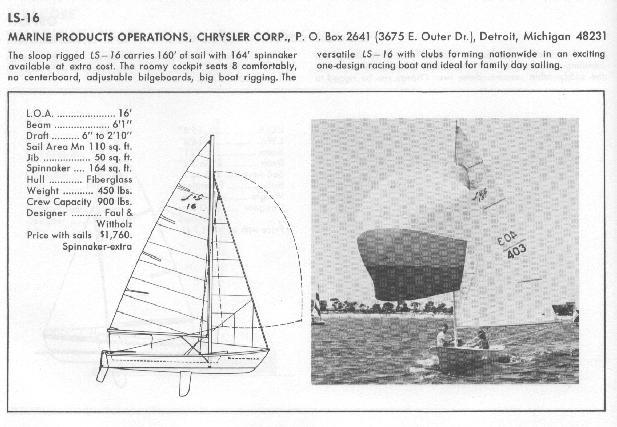

Thanks go to Michael Mason for scanning and sending the following Lone Star 16 specifications, circa 1968.

GENERAL: The sloop-rigged LS-16, carries 160' of sail with 164' spinnaker available at extra cost. The roomy cockpit seats 8 comfortably, no centerboard, adjustable bilgeboards, and big boat rigging. The versatile LS-16 with clubs forming nationwide in an exciting one-design racing boat and ideal for family day-sailing. *

SPECIFICATIONS: *

Designer: Foul & Wittholz

LOA: 16'

LWL: Not Listed

Beam: 6'1"

Displacement: 450 lbs.

Draft: 6' to 2'10"

SA(sq.ft.): Main--110, Jib--50, Spinnaker--164

Hull: Fiberglass

Capacity: 900 lbs.

Source: Sailboat Directory, 1968

If you have, or know of any other information about the Chrysler LS-16 "Lone Star", please send it to me via e-mail by clicking on the "e-mail" button in the left frame.

This page last updated on Sunday, April 1, 2001.
